I. Product Overview
Paper Strapping Production Line is a fully automatic production line specially used for the production of Paper Strapping. This production line can efficiently produce environmentally friendly and recyclable paper strapping, meeting the needs of logistics, packaging and other industries for environmentally friendly packaging materials.

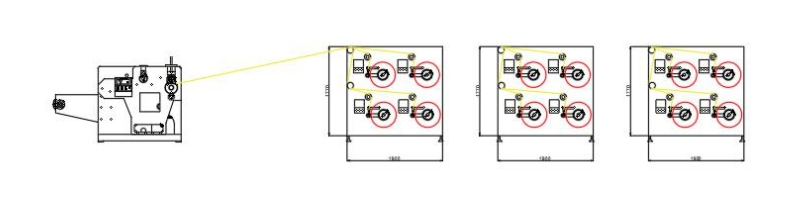

II. Product Composition
1 Slitting Machine
1) Unwinding shaft: 3-inch tile-type air-expanding shaft, the unwinding shaft adopts a 40KG magnetic powder tension control system, and the tension can be adjusted at will.
2) Correction system: ultrasonic correction device is used.
3) Measuring mode: meter mode.
4) Slitting tool configuration:9mm*12 strips, 12mm*12 strips, 15mm*12 strips, 1 set each
3 Workstation Winders
1) Select the corresponding bandwidth for winding through the touch screen, and there is no need to manually change the transmission gear.
2) After winding is completed, the machine stops automatically, and the paper tube is manually replaced for rewinding.
3) The tension during winding can be set and adjusted through the touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, minimizing the bending deformation of the strapping tape after winding.
4) After winding, the strapping tape needs to be removed manually and a new paper tube installed.
III. Product Features
High efficiency: Paper Strapping Production Line adopts advanced automation technology and equipment, which greatly improves production efficiency.
Environmental protection: The entire production line uses paper materials as the main raw material, which can be completely degraded and will not pollute the environment.
Customizability: The production line can be customized according to customer needs, including paper strapping tapes of different widths, lengths, thicknesses and strengths.
Stability: The production line adopts a stable and reliable control system and high-quality materials to ensure stability and product quality during the production process.
Ⅳ. Application field
Paper Strapping Production Line is widely used in logistics, packaging, printing and other industries to produce paper strapping tapes of various specifications and requirements. These paper strapping tapes can be used to fix and bundle cartons, pallets and other goods to ensure stability during transportation and storage.
Ⅴ. Market trend
With the improvement of global environmental awareness and the popularization of the concept of sustainable development, paper strapping tape as an environmentally friendly and recyclable packaging material is increasingly favored by the market. As one of the key equipment for producing this material, the market demand for Paper Strapping Production Line is also increasing. In the future, with the continuous advancement of technology and the continuous expansion of the market, Paper Strapping Production Line will be applied and developed in more fields.
